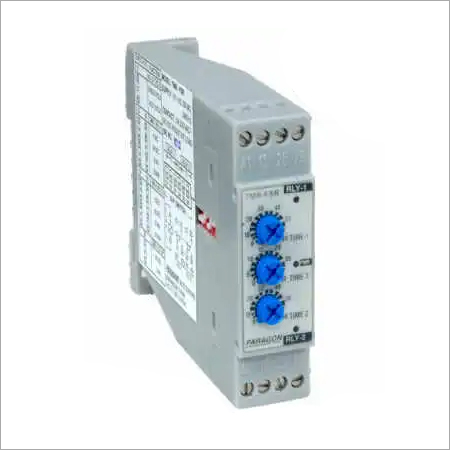

Programmable Timer
Established in the year 1996, we are the leading manufacturer, supplier and exporter of Programmable Timer.Developed using quality electrical components, we are offering these timers as per international standard.We are offering less power consumption, durable and high performance timers to our valuable clients. Programmable Timer is highly used in various domestic and commercial areas. We are committed to offer quality range of product to clients, so we stringently check these timers on quality standards.
Specifications:
Timer
Function / Model | TIMEX 932 | TIMEX 732 | TIMEX 432 |
Size | (96x 96x 74) mm Refer Size (1) table | (72x 72x 74) mm Refer Size (2) table | (48x 48x 92) mm Refer Size (3) table |
LED Display | 3 Digit, 0.5" Height | 3 Digit, 0.5" Height | 3 Digit, 0.39" Height |
Delay Mode | On delay, off dealy (Interval)-Selectable. (Refer Fig.1) | ||
Time Range | 9.99, 99.9, 999 Sec / 99.9, 999 Min / 99.9 Hrs. - Selectable. | ||
Start Input | Gate / Pulse start - Selectable | ||
Reset Input | Front panel Key / Rear Terminal for remote reset / At Power on. (Front panel reset key - enable / disable facility.) | ||
Relay Output | Two change over, with 5A @ 230VAC / 24 VDC contact ratings. | ||
Accuracy | 0.05% or 50 msec, whichever is greater. | ||
Power Supply | 90 to 250 VAC/DC @ 50/60 Hz. ( 24 VAC/DC provided on request ) | ||
General Feature | Set Point : Single ser point, Count Direction : Down, | ||
Memory Retention | | 10 year, available in | 10 year, available in |
